ZK4500
  • Stable and excellent fingerprint reader
  • Capture fingerprint image and upload to the PC by USB interface

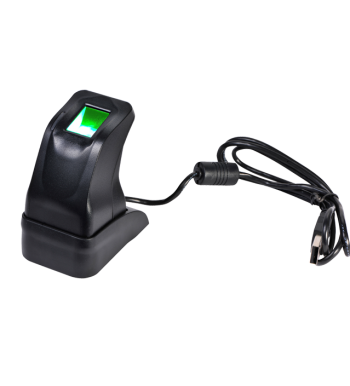

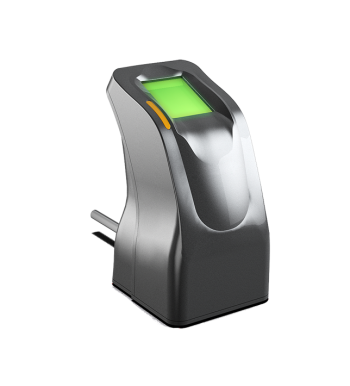

ZK4500 is a stable and excellent fingerprint reader. The device can capture fingerprint image and upload to the PC by USB interface.

It supports Windows 2000/XP/2003/Vista/7/8(32/64bit) . We provide developer with SDK. The developer can integrate the hardware into their own system.

This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.

  • High-performance, maintenance-free optical fingerprint sensor.
  • Readily accessible for any finger.
  • 2 High quality industrial-class ABS plastic material with scratchproof texture surface treatment.
  • Removable weighted stand.
  • High speed USB interface.
  • LED indicates the status of the device.
  • Driver CD included.
  • Available SDK for secondary development.

Fingerprint sensor

ZK Optical Sensor (No Film)

Resolution

500 DPI/256 gray

Sensing Area

15×18 mm

Image Size

280×360 pixel

Interface

USB1.1/2.0

Support O/S

Windows 2000/XP/2003/Vista/7/8(32/64bit)

Operating Temperature

0° - 55°C/32 - 131°F

Operating Humidity

20% - 80%

Color

Black

USB cable

150 cm

Weight

0.24 kg

Dimension

53×80×66 mm

Driver and development document

ZK4500

0.2 Mb Data Sheet
2015-09-08
