VF600
  • 800(Standard)/1200(Optional)(1:N) Face capacity
  • Face/Card/Password Multi-verification
  • Wi-Fi, Ethernet communication

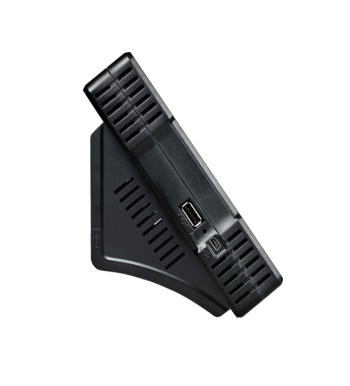

VF600 is a face identification T&A terminal with face, PIN and RFID recognition modes. With the latest face identification algorithm and streamlined technology. It can hold 400 face templates without dividing into groups and complete verification in less than 1 second. The communication function is via Wi-Fi, Ethernet, and USB (host and client). It can ensure a smooth connection and data transfer. All the settings can be easily done on 3-inch TFT touch screen. It has been elaborately designed and finely processed to match your slap-up office perfectly.

  • Elegant ergonomic design.
  • Wi-Fi, Ethernet, and USB (host and client) communication.
  • 3-inch TFT touch screen, T9 Input, 9 Digit User ID.
  • Infra-red optical system enables user-identification in poorly lit environment.
  • Optional Mifare card module.
  • Professional face identification algorithm.

Display

3-inch Touch Screen

Face Capacity

800(Standard)/1200(Optional)(1:N)

ID Card Capacity

10,000

Logs Capacity

100,000

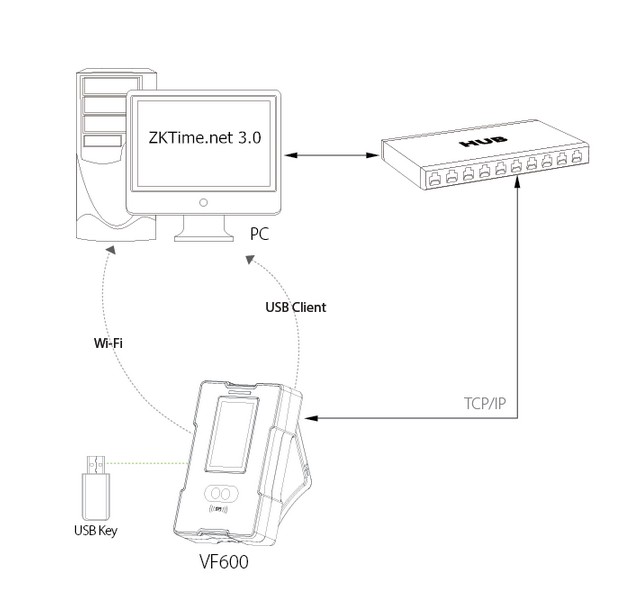

Communication

TCP/IP, USB (host and client)

Standard Functions

ID Card,Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell and SMS

Optional Function

Mifare Card, Wi-Fi

Power Supply

12V/1.5A

Verification Speed

≤1 sec

Operating Temperature

0-45 °C

Operating Humidity

20%-80%

Dimensions

104.7 × 160 × 36 mm (L × H × D)

';

USB cable

Back Plate

Electric wire intake box

Measuring tape

Mounting paper

Power adapter

Screw driver

Screws

Touch pen

VF600

0.49 Mb Data Sheet
2015-09-09

VF600 User Manual

9.64 Mb User Manual
2015-09-09

VF600 Quick Start Guide

0.84 Mb Quick Start Guide
2015-09-09
