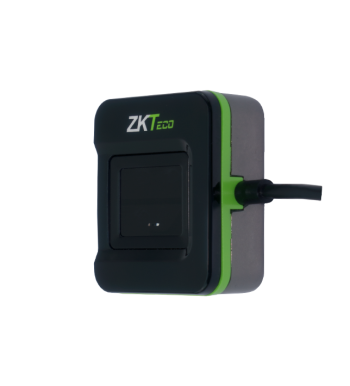

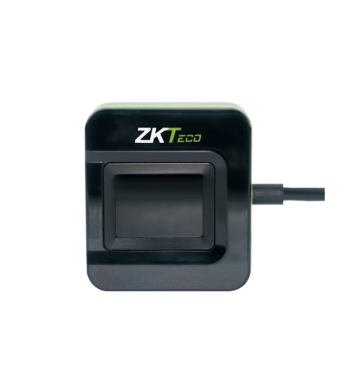

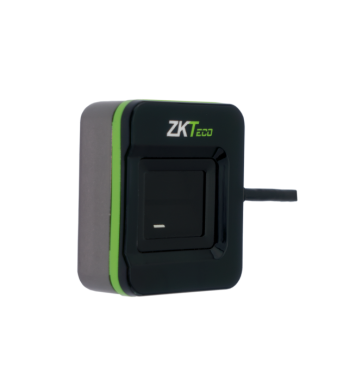

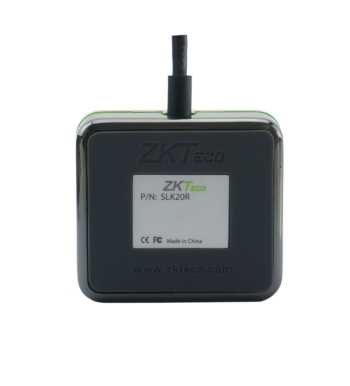

SLK20R
- Unique design
- Powerful performance
SLK20R is a leading fingerprint sensor designed by ZKTeco USA laboratroy which adopts the advanced optical design. It has a superior ability to anti-fake fingerprint and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most comfortable and affordable desktop enrollment and identification device.
- Stable operation under strong light
- Support anti-fake fingerprint function
- Large fingerprint capture area and high image performance
- Quick recognition of dry, wet and rough fingers
- High Speed USB 2.0
- Low Power Idle Mode
- Available SDK for development
|
Sensor Type |
Optical |
|
Touth Surface Area |
16.5*23mm |
|
Image Capture Area |
15.24*20.32mm(FAP20) |
|
Image Size |
300*400 |
|
Resolution(dpi) |
500 |
|
Interface |
USB 2.0, compatibale with USB 1.1 |
|
Operating systems |
Windows xp/Vista/7/8/10(32/64 bit), Android |
|
Supply voltaget |
5V, supplied by USB |
|
Operating Environment |
-20 °C ~ +50 °C; 90% r.h. |
|
Finger rotation |
360° |
|
Dimension |
49×44×20.1mm(L*W*TH) |
SLK20R
0.26 Mb
Data Sheet
2016-11-27
