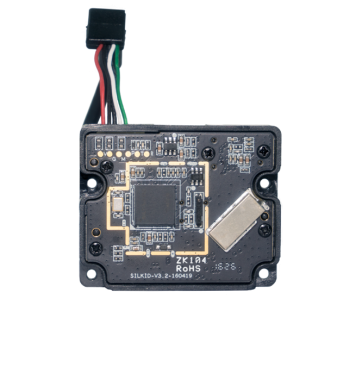

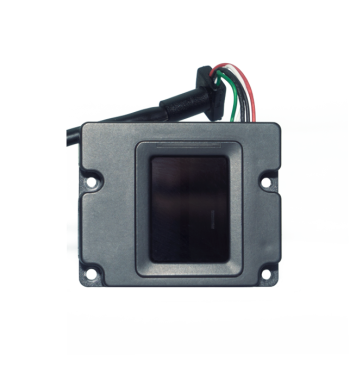

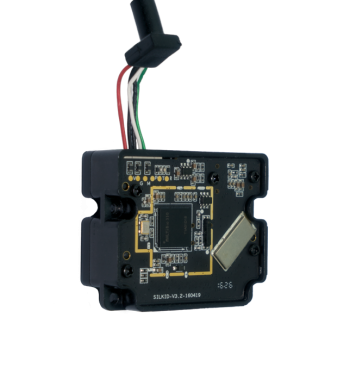

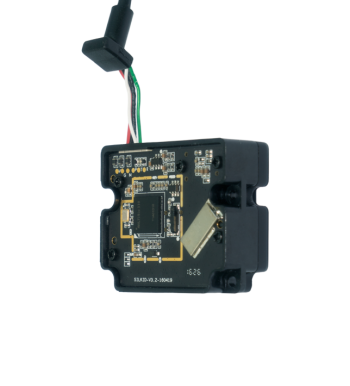

SLK20M
  • Ideal design
  • Powerful performance

SLK20M as the smallest optical embedded module in the world. combines 2 megapixel image sensor with ARM9 processor for powerful performance. With ultimate design. It can be flexibly integrated with various system applications without requiring any additional accessories.

  • Easy integration by smallest size without any extra accessories
  • Durable glass touch surface
  • Stable operation under strong light source
  • Quick recognition of dry, wet and rough fingers

Host Comm

232-TTL/USB

CPU

264MHz

Flash Memory

32MB

Template Size



Fingerprint Capacity

2000

Sensor Option

optical

Resolution(dpi)

500

Image Capture Area

15.24*20.32mm(FAP20 )

Image Size(px)

300*400

Finger Rotation

360°

Supply Voltage

5V:250mA scanning



5V:25mA idle(waiting for finger)

Module Dimension

36.2*44.2*15.85mm(L*W*H)

Optional Feature

anti-fake within limit

SLK20M

0.25 Mb Data Sheet
2016-11-27

SLK20M User Manual

0.33 Mb User Manual
2016-11-27
