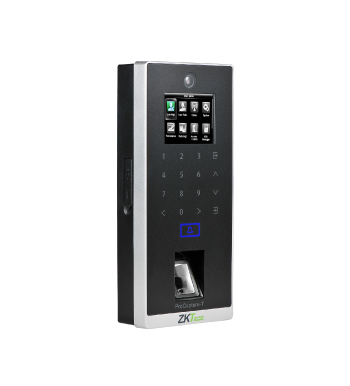

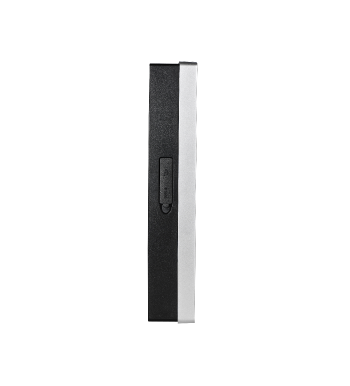

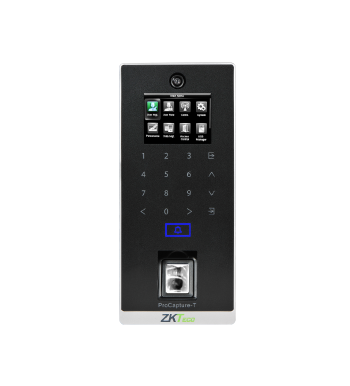

ProCapture-T
  • Revolutionary SilkID Fingerprint Sensor
  • Built In Camera:Event Snapshot and User Photo(Optional)

ProCapture-T is an access control terminal applying the most advanced SilkID fingerprint sensor. Its outstanding performance provides a high identification rate towards dry, wet and rough fingers, being capable to detect alive finger for a higher security level.

The fingerprint verification speed has been dramatically increased by its optimized fingerprint algorithm and the brand new ZMM220 hardware platform, equipped with a fast 1.2GHz processor.

The touch keypad delivers a smooth and easy user operation to enroll and delete users, set device and access control parameters, etc.

Its built-in camera allows to capture user’s photos and events snapshots to provide attendance evidence (optional function).

• Modern Design & Interactive UI
• Revolutionary SilkID Fingerprint Sensor
• Multiple Verification Modes:Fingerprint / Card / Password
• Outstanding Performance With Dry, Wet and Rough Fingers
• Built In Camera: Event Snapshot and User Photo (Optional)

Fingerprint Capacity

20,000

Card Capacity

20,000

Transactions Capacity

100,000

User Photos

3,000

Event Photos

7,000

Communication

TCP/IP, RS485 (For Slave Reader), USB Host, Wiegand Input / Output, Security Relay Box

Hardware

1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, SilkID Fingerprint Sensor, 2,4 Inches TFT-LCD Touch Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad, 120° Wide Angle Camera

Standard Functions

Access Levels / Groups / Holidays , DST / Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver

Special Functions

Multiple Verification Modes, Alive Finger Detection, Event Snapshot, User Photo(Optional)

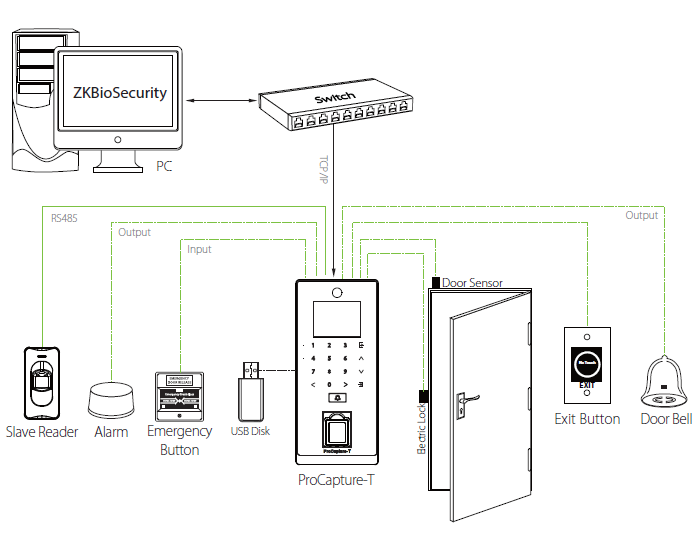

Access Control Interface

Lock Relay Output, Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output

Compatibility

Wiegand Slave Reader, RS485 FP Slave Reader , ZKBioSecurity Software

Working Temperature

-10 °C ~ 50 °C

Dimensions

195.5 × 87 × 35 mm.

Algorithm

Fingerprint Algorithm ZKFinger v10.0

Power

Operating Voltage 12V DC, Current Draw < 500 mA

';

Diode (FR107)

Installation Guide

Measuring Tape

Power Adapter

RJ45 Connector

Screw Driver

Screws and holders

Cables

ProCapture-T Installation Guide

2.64 Mb Installation Guide
2016-03-01

ProCapture-T Quick Start Guide

2.35 Mb Quick Start Guide
2016-03-01

ProCapture-T User Manual

6.98 Mb User Manual
2016-03-01

ProCapture-T

1.09 Mb Data Sheet
2017-04-16
