PB1000
  • Compact design, convenient for packing and lowering delivery cost
  • ZK designed rolling pressure spring technology, extending product life

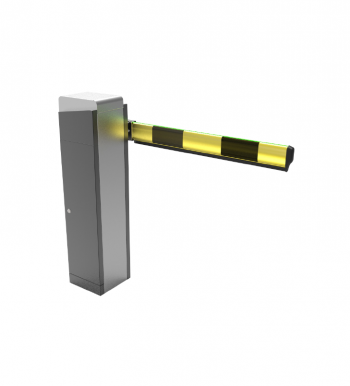

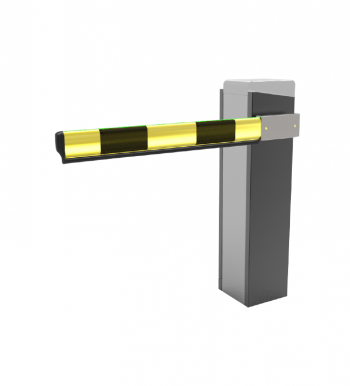

ZK Boom Barrier is a product which ZKTeco owns the independent intellectual property rights. Its boom prevents entry of unauthorized vehicles to restricted area, and is raised by the linkage between the gate and the remote control, access control system, long-distance reader and number plate recognition system. If a floor sensor is installed, strike can be avoided, and the boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.

The boom can be equipped with pressure wave. When there is any hindrance during the boom lowering, the boom will be automatically raised to prevent it from striking vehicles or people. LED light tape is also optional for changing color in boom raising or lowering, helping driver avoid hitting the boom.

  • Compact design, convenient for packing and lowering delivery cost
  • ZK designed rolling pressure spring technology, extending product life
  • Boom can be raised and lowered smoothly and steadily
  • Outer case and interior can be flexibly separated, convenient for maintenance and customization
  • Simple installation – just fix the barrier gate on floor and connect it to electricity
Model No. PB1010L/R PB1030L/R PB1060L/R
Lane Width 3M, up to 3.8M with telescopic boom 4M, up to 4.8M with telescopic boom 5M, up to 5.8M with telescopic boom
Opening / Closing Time 1S 3S 6S
Supply Voltage 110V AC or 220V AC 110V AC or 220V AC 110V AC or 220V AC
Power Consumption Max. 200W 200W 200W
Frequency 50-60Hz 50-60Hz 50-60Hz
Cabinet Material Powder Coated Steel Powder Coated Steel Powder Coated Steel
Boom Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Base Frame Cast Iron Cast Iron Cast Iron
Temperature Range -20°C~+60°C -20°C~+60°C -20°C~+60°C
Humidity Range ≤90% ≤90% ≤90%
Ingress Protection IP54 IP54 IP54
Housing Dimensions (W x D x H) 240 x 250 x 980mm 240 x 250 x 980mm 240 x 250 x 980mm
Packing Dimensions (W x D x H) 410 x 390 x 1170mm 410 x 390 x 1170mm 410 x 390 x 1170mm
Net Weight (Without Boom) 49KG 50KG 51KG
Gross Weight (Without Boom) 54KG 55KG 56KG
