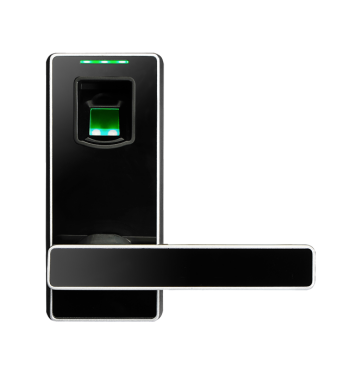

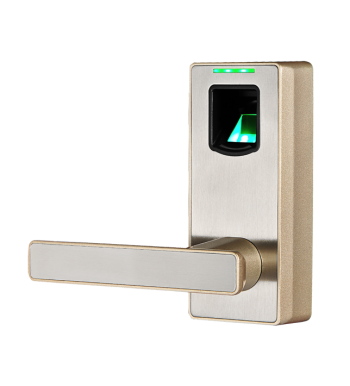

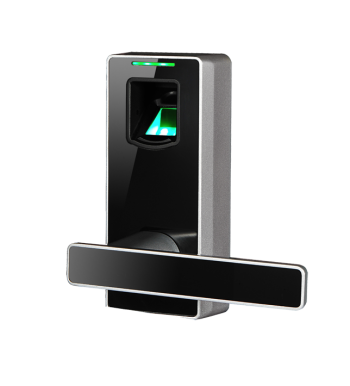

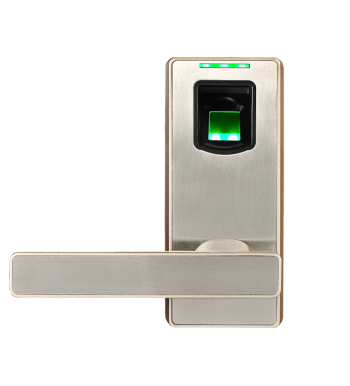

ML10
  • American standard single latch
  • Fingerprint/Key
  • Rugged housing with zinc alloy material

ML10 is a smart lock with embedded fingerprint recognition technology. It is DIY design, which can replace knob lock easily and quickly. You even can do it by yourself.

  • With the new generation fingerprint recognition algorithm
  • Rugged, sleek and compact design
  • American standard single latch for easy replacement and installation
  • Independent clutch motor design under patent protection
  • Idle handle design to prevent from forcible entry
  • Registration data are stored even if there is power loss
  • Handle,latch and strike is reversible design for all door open direction
  • Infrared sensor–Touch to open
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power from a 9V battery
  • Low battery warning
  • Normal Open mode
  • Easy to program and easy to use
  • Easy to install–no wiring required
  • 3 user groups - Admin, Normal User and Temporary User
  • Backset is 60 mm or 70mm (adjustable)

Material

Zinc Alloy

User Capacity

Admin -10



Normal User - 60



Temporary User - 20

Operating Temperature

0 °C- 45 °C

Power Supply

4 x AA Alkaline Battery

Backup Unlock

Mechanical Key & 9V Battery

Door Thickness

30-38 mm (optional)



39-46 mm (standard)



47-54 mm (standard)



55-60 mm (optional)

Dimensions

Front - 69(W)×155(L)×35(D) mm

Back  - 69(W)×155(L)×25(D) mm

Gasket

Indoor Unit

Installation Guide

Mechanical key

Mounting plate

Outdoor unit

Screws

Single latch

Spindles

Strike box

Strike plate
