IN01-A
  • Color TFT screen with GUI Interface for ease of use
  • ZK Optical Sensor
  • 1 touch a-second user recognition

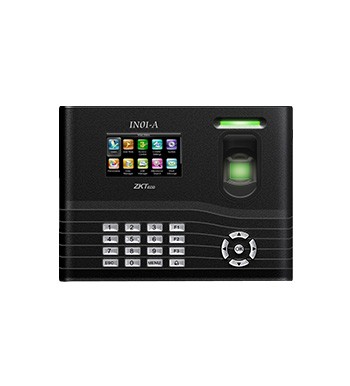

IN01-A is a fingerprint time attendance and access control terminal with built-in 2000 mAh backup battery which can eliminate the trouble of power failure.

The 3" TFT screen can display more information vividly including fingerprint image quality and verification result, etc.

  • Color TFT screen with GUI Interface for ease of use
  • ZK Optical Sensor
  • 1 touch a-second user recognition
  • Reads Fingerprint and/or PINs
  • Optional integrated proximity or smart card reader
  • Built-in Serial and Ethernet ports
  • Multi Language Support
  • Built-in battery backup provides approx 4 hours continuous operation
  • Optional built-in wireless Wi-Fi or GPRS for wireless communication
  • Real-time 1-touch data export 3rd party hosted & non-hosted applications
  • SDK available for OEM customers and software developers

Fingerprint Capacity

3000 templates

Transaction Capacity

100,000

Hardware Platform

ZEM510

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger v10.0 and v9.0, default v10.0

Communication

RS232/485, TCP/IP, USB-Client, USB-Host

Access Control Interface for

electric lock, door sensor, exit button, alarm, door bell.

Wiegand signal

Input & Output

Standard Functions

Work code, SMS, DLST, Self-Service Query, Automatic Status Switch, Back-up battery, anti-pass back

Optional Functions

ID/Mifare/HID, Extensible barcode, Relay-bell, Scheduled-bell, Web-server, SOAP, 9 digit user ID, Wi-Fi, GPRS

Display

3 inches TFT Screen

Power Supply

12V DC 3A

Operating Temperature

0 ℃- 45 ℃

Operating Humidity

20%-80%

Dimension(W×H×D)

210×157×50mm

IN01-A

0.56 Mb Data Sheet
2016-02-25
