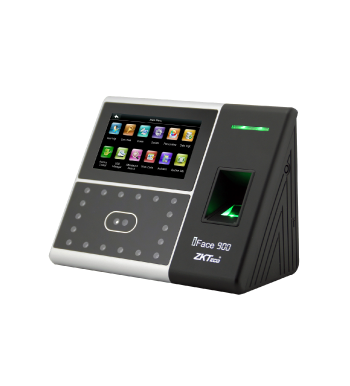

iFace900
  • Advanced face algorithm and multi-biometric verification technology
  • New UI and user-friendlu operation interface

iFace900 is a Multi-Biometric T&A and Access Control Terminal which supports 3,000 face templates, 2,000 fingerprint templates and 10,000 cards (optional). It is equipped with ZKTeco latest hardware platform and algorithm, which provide clients with a brand new UI and user-friendly operating interface, bringing them a smooth using experience.

With the advanced face algorithm and multi-biometric verification technology, the terminal's security level of verification is greatly enhanced.

  • Multi-languages
  • High verification speed
  • Advanced and user-friendly UI
  • Chip encryption for firmware protection
  • Optional built-in battery backup providing approximately 4 hours of continuous operation
  • Easy to extend functions and customize client’s requirements
  • One face template is registered for one user only
  • Able to detect whether the face is an actual face or a photo, enhancing the security level of verification

Display

4.3" TFT Touch Screen

Face Capacity

3,000 (1:N)

Fingerprint Capacity

2,000

ID Card Capacity

10,000 (Optional)

Logs Capacity

100,000

Communication

TCP/IP, RS232/485, USB Host

Time Attendance Standard Functions

Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-Bell, Photo-ID, Multiple Verify Mode, ADMS

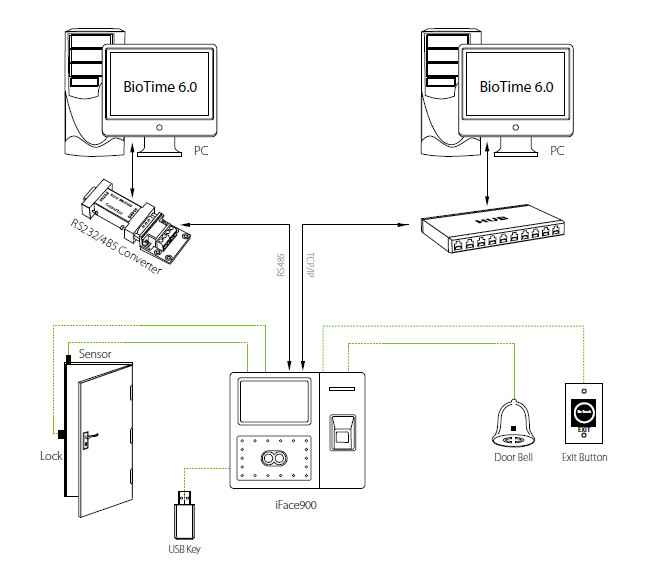

Access Control Interfaces for

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Wiegand Signal

Output

Optional functions

2000mAh Backup Battery, ID Card, Mifare card, Wi-Fi, 3G

Power supply

DC 12V 3A

Verification Speed

≤1 sec

Operating temp.

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

193.6×165.2×86 mm

';

Back Plate

Measuring Tape

Mounting Paper

Power Adapter

Screw Driver

Screws

Cables

iFace900 User Manual

8.56 Mb User Manual
2016-07-12

iFace900

0.33 Mb Data Sheet
2017-04-16
