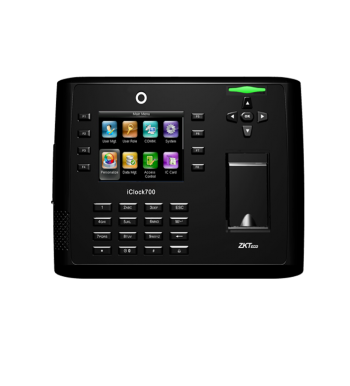

iClock700
  • 3.5 inches color TFT screen
  • Supports different multimedia formats
  • Internal camera and photo-ID that support user’s photo display

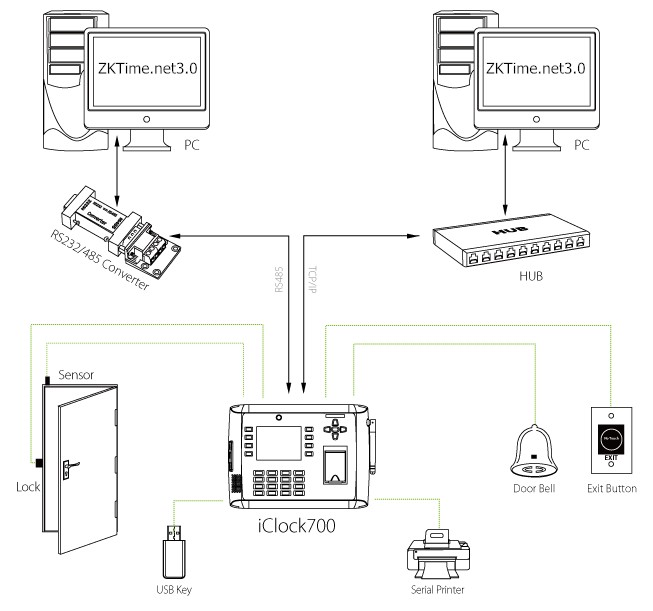

iClock700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover,RS232/485, TCP/IPand USB client ensures a smooth date transmission between device and PC.

It also has GPRS,Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button,alarm and Door Bell.

Remarkable User Experience

  • Intuitive and stunning UI designed with the most popular and internationalized element.
  • Interface operation adopts modularized hierarchical design.
  • Faster matching speed: Less than 1second.

 Enhanced Features and Performance

  • Multi-languages
  • Data backup and retrieve.
  • Advanced User ID consisting of letters and numbers.
  • Chip encryption for firmware protection.
  • Easy to extend functions and customize customers’ requirements.

 Access Control Interface

  • For Wiegand in and out, door lock connection, alarm and bell.

Fingerprint Capacity

8000

ID Card Capacity

10,000 (Optional)

Record Capacity

200,000

Display

3.5-inch TFT Screen

Communication

RS232/485, TCP/IP, USB-client

Standard Functions

Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,Photo ID, T9 Input, Anti-passback, Camera, Built-in Battery , Multiple Verify Mode

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell

Wiegand Sigal

Input & Output

Optional Functions

ID/Mifare/HID, External Printer, ADMS, Wi-Fi, GPRS, 3G

Software

ZKTime.Net 3.0

Power Supply

DC 12V 3A

Verification Speed

≤ 1Sec.

Operating Temp.

0°C - 45°C

Operating Humidity

20% - 80%

Dimension

225.2×166.0×46.3mm (Length×Width×Thickness)

Gross Weight

1.94 kg

';

Back Plate

Backup battery

Wires

Mounting paper

Power adapter cable

Power adapter

Screw driver

Screws

iClock700

0.4 Mb Data Sheet
2015-09-09
