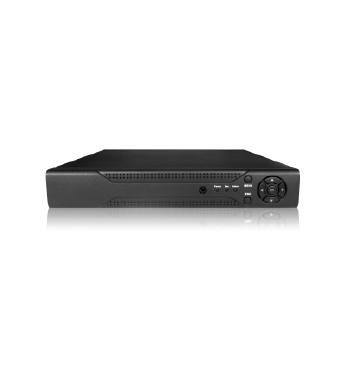

GT-ADR401/801/1601MH
- 4/8/16-ch video input
- Supports hybrid video input - AHD-H, Analog and IP camera
- With VGA, HDMI HD output
- 4/8/16-ch video input
- Supports hybrid video input – AHD-H, Analog and IP camera
- With VGA, HDMI HD output
- H.264 compression
- With 1 SATA, max to 6 TB
- Supports phone monitoring (iPhone, Android)
- Supports web browser access
- Support Multi-language
- Support IE web server, client software
Technical Specifications |
|||
| Product Model | GT-ADR401MH | GT-ADR801MH | GT-ADR1601MH |
| Video Compression | H.264 (High Profile) | ||
| Video Input | Analog: 4*AHD-MH ; | Analog: 8*AHD-MH ; | Analog: 16* AHD-MH; |
| Mixed: 2* AHD-MH (analog) | Mixed: 4* AHD-MH (Analog) | Mixed:8* AHD-MH (analog ) | |
| +2*1080P (network); | +4*1080P(Network); | +8*1080P( network ); | |
| Network: 8*1080P; 8*960P; | Network: 8*1080P;16*960P; | Network: 8*1080P+8*960P; | |
| Coding/Decoding | 4*AHD-H@15fps | 8*AHD-H@12fps | 16*AHD-H@12fps |
| Input Mode | Each group (CH1&CH2, CH3&CH4, etc) support the same signal input | ||
| Audio Input/Output | 4-ch RCA/1-ch RCA | 4-ch RCA/1-ch RCA | 2-ch RCA/1-ch RCA |
| Video Output | 1-ch VGA, 1-ch HDMI | ||
| Playback/Backup | 4 channels/Network backup, USB mobile hard disk | ||
| Hard Disk Interface | 1 SATA (Max 6TB) | ||
| Space Occupied | 1080P 20~30G / day*channel; 720P 20G / day*channel; Audio: 691.2M / day*channel | ||
| Network Interface | RJ45 10M/100M adaptive ethernet interface | ||
| USB/Serial Interface | 2 USB 2.0 ports/1 RS-485 Support multi kinds of PTZ protocol | ||
| Power | 12V/2A | ||
| Dimension(color box) | 345mm*95mm*275mm | ||
| Net/Gross Weight | 1.0kg/1.8kg | ||
GT-ADR401/801/1601MH
0.23 Mb
Data Sheet
2017-03-23
