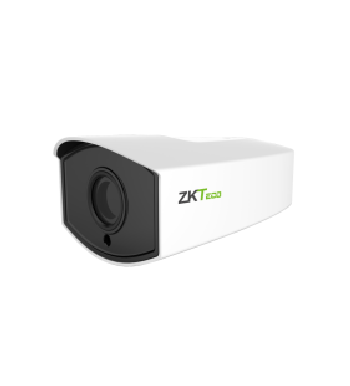

GT-ADP220
  • AHD/TVI/CVI/CVBS 4 in1
  • GC2023 CMOS sensor
  • 500m Coaxial Transmission
  • Data Transmission Without Time Delay

Technical Specifications

Model

GT-ADP220

Sensor

GC2023 CMOS sensor

Light-sensing surface area

1/3”

Resolution

2.0MP

Definition

1920(H)×1080(V)

Video Frame

1920x1080@25fps; 1920x1080@30fps

Min. illumination

0.01Lux@ (F1.2, AGC ON), 0 LUX with IR

Lens

4mm (6mm lens optional)

Shutter

Auto/1/50(1/60)s to 1/10,000s

D&N

IR-CUT

SNR

>46dB

Video Output

1.0V P-P AHD/TVI/CVI/CVBS

IR Distance

20m

Power Supply

DC12V±10%

Working Environment

-20 °C- 50 °C

Gross/Net Weight

0.64KG/0.5KG

Dimension(color box)

230mm*130mm*117mm

Ethernet

1*RJ45 10M/100M

GT-ADP220

0.12 Mb Data Sheet
2017-03-22
