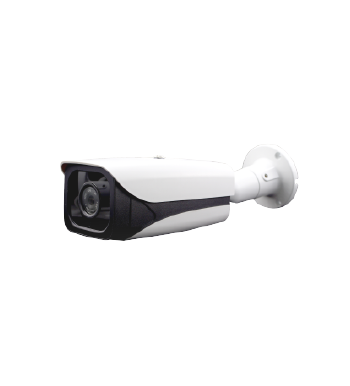

GT-ADM210E/210/213/220
- H42/OV9712/Aptina sensor
- 3D DNR and digital WDR
- Transmission distance up to 500 meters
- Support real-time transmission
| Technical Specifications | ||||
| Model | GT-ADM210E | GT-ADM210 | GT-ADM213 | GT-ADM220 |
| Sensor | H42 CMOS | OV9732 CMOS | Aptina 0130 CMOS | Aptina 0230 CMOS |
| Light-sensing Area | 1/4-inch | 1/4-inch | 1/3-inch | 1/3-inch |
| Resolution | 1.0MP | 1.0MP | 1.3MP | 2.0MP |
| De nition | 1280(H)x720(V) | 1280(H)x720(V) | 1280(H)x960(V) | 1920(H)x1080(V) |
| Video Frame | 1280×720@25 fps;1280×720@30 fps | 1920×1080@25 fps; | ||
| Frame Rate In Main Stream | 1—4Mbps | 1—4Mbps | 1—5Mbps | 8Mbps |
| Min. illumination | IR on: 0 Lux | |||
| Lens | 4mm lens standard(6 & 8&12mm lens optional) | |||
| Signal Noise Ratio | 40dB | 40dB | 45dB | 40dB |
| White Balance | Auto | |||
| Shutter | Auto | |||
| Infrared Resection | IR-CUT | |||
| IR Distance | 20-25m | |||
| Power Supply | DC 12V /1.5A | |||
| Operating Temperature | -10 °C- 50 °C | |||
| Net/Gross Weight | 400g | |||
GT-ADM210E/210/213/220
0.12 Mb
Data Sheet
2017-03-22
