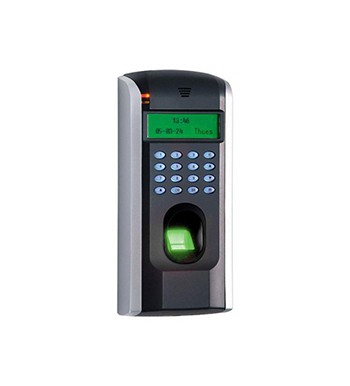

F7
  • Small and Elegant design
  • Standalone

One touch, that’s all it takes for access control with ZKTeco's F7 biometric reader that offer the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand.

Fast, reliable performance combined with affordability gives ZK readers the competitive edge. Each reader has the capacity to store up to 2,200 fingerprint templates and 30,000 transactions. Enrolling users is fast and easy, since most of our readers have a user-friendly keypad and display. Managing our readers is also simple. All our readers are easily accessed through a TCP/IP or serial port, with the ability to automatically update and synchronize when networked together.

  • 1-touch 1-second employee recognition
  • Fingerprint reader with durable and highly accurate ZK optical sensor
  • Capacity to store 2200 template and 50000 transactions
  • No need to enter PINs
  • Supports 50 time zones, 5 groups and 10 unlock combinations
  • Tamper-proofs switch and alarm outputs
  • Request-to-exit and alarm contacts
  • Operates stand-alone without a computer
  • TCP/IP, serial and Wiegand interfaces
  • Real-time 1-touch data export to 3rd party hosted & non-hosted applications
  • Audio-Visual INDICATIONS for acceptance & rejection of valid and invalid fingerprints
  • SDK available for OEM customers and SOFTWARE developers
Fingerprint Capacity 2,200 templates
Transaction Capacity 50,000 transactions
Sensor

ZK Optical

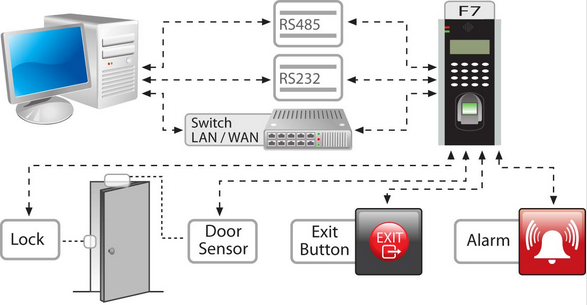

Communication RS232/485, TCP/IP
Access Control interfaces 3rd party electric lock, door sensor, exit button, door alarm
Access Control functions Anti-pass back (with F12 slave)
Power Supply

12V DC 3A

Operating Temperature 0 °C - 45 °C
Operating Humidity

20% - 80%

Dimension

90 X 190 X 39mm

';

Cables

Diode (FR107)

Installation Guide

Screw driver

Screws

F7 Installation Guide

0.89 Mb Installation Guide
2015-09-08

F7

0.45 Mb Data Sheet
2015-09-08
