F18
  • TFT Color Screen
  • Full Access Control Features
  • Slim and Elegant Design

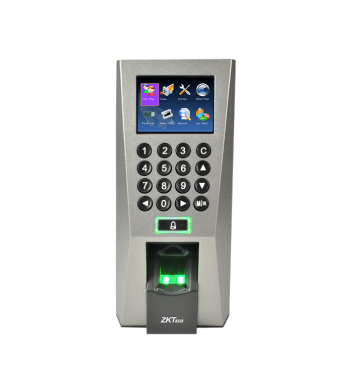

F18 is an innovative biometric fingerprint reader for access control application. Offered unparalleled performance by using an advanced algorithm for reliability, precision and excellent matching speed.

The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor. The device offers flexibility to be INSTALLED standalone or with any third party access control panels’ .that support standard Wiegand signal. All the operations can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network

  • 1 touch a-second user recognition
  • Fingerprint reader with durable and highly accurate ZK optical sensor
  • Stores 3000 templates, 5,000 CARDS and 30,000 transactions
  • Reads Fingerprint and/or CARD
  • OPTIONAL integrated smart CARD reader
  • Built-in Serial and Ethernet ports
  • Tamper-proofs switch and alarm outputs
  • Request-to-exit and alarm contacts
  • Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Fingerprint Capacity

3000 Templates

Transaction Capacity

30,000 Transactions

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger VX9.0&10.0

Communication

RS232/485, TCP/IP, USB-host

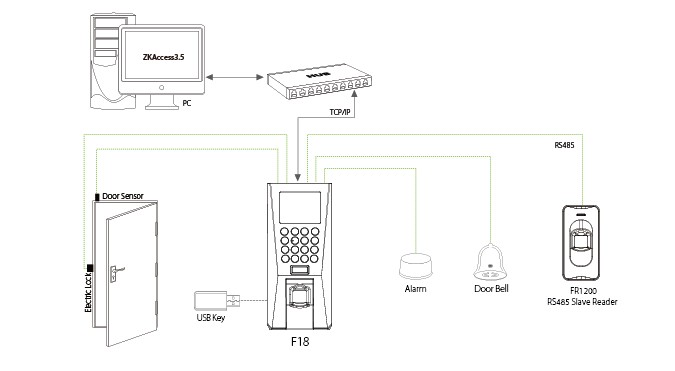

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

Wiegand Signal

Input and Output

Display

TFT LCD Color Screen

Interface Styles

Common, Matrix and Magic styles

Standard Function

Webserver, Anti-passback

Optional Function

ID Card, Mifare Card

Power Supply

12V DC,3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension(WxDxH)

80×183×42mm

';

Cables

Diode (FR107)

Installation Guide

RJ45 connector

Screw driver

Screws

F18

1.07 Mb Data Sheet
2015-11-04

F18 Quick Start Guide

1.67 Mb Quick Start Guide
2015-11-04

F18 User Manual

1.56 Mb User Manual
2015-11-04
