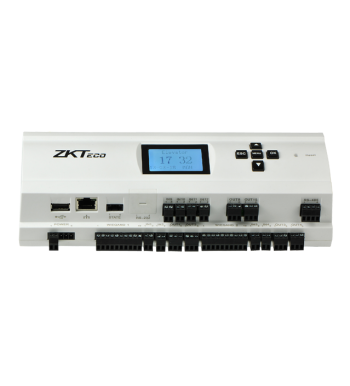

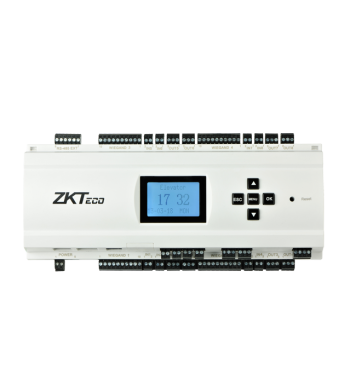

EC10
  • Secure, scalable and versatile
  • Elevator Controls and Expansion Boards

Designed specifically for elevator control, the EC10 panel and EX16 floor extension boards provide customers the most secure, scalable, versatile and affordable access control solution available today for elevators.

Floor access can be restricted based on various user credentials including fingerprint, proximity card and/or password.  Pre-defined time schedules can also be used to control floor access.  During normal visitor/business hours, unrestricted floor access can also be permitted (aka Passage mode).

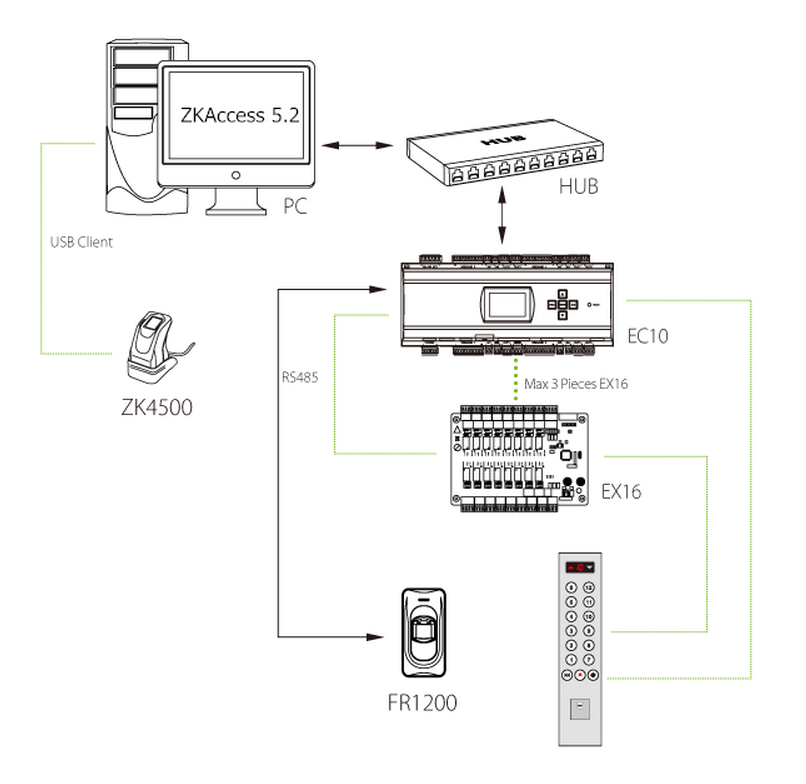

The EC10 Elevator Control Panel can restrict access up to ten floors.  The EX16 Elevator Floor Extension Boards restrict access up to an additional sixteen floors.  Each EC10 can support up to three EX16 boards.  When combined, a total fifty eight (58) floors can be controlled with a single US10 bundle.  Note US10 panels can be daisy-chained together to control as many floors as desired.

Our powerful yet easy to use software makes the Elevator Control System very easy to manage.  SDK available for software companies wishing to integrate the system.

Model

 EC10

Floor Button Control Relay

10

Fingerprint Capacity

3000

RFID Card Capacity

30,000

Event Capacity

100,000

Power Supply

12V DC 1A

Communication to PC

TCP/IP, RS485

Communication to EX16

RS485

Number of supported EX16

3

Dimension(L×D×H)

242mm×95mm×60mm

Net weight

0.8Kg

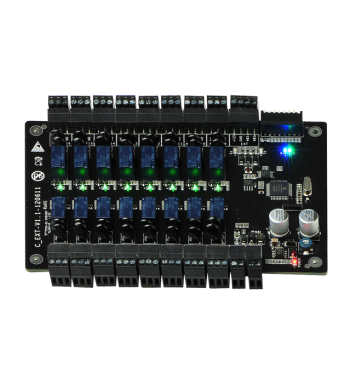

Model

EX16

Floor Button Control Relay

16

Communication to EC10

RS485

RS485 address

Set by DIP switch

Power Supply

12V DC 1A

Dimension (L×D×H)

160mm×106mm

Net weight

0.2Kg

';

Diode (FR107)

Installation Guide

Screw driver

Screws

EC10

0.58 Mb Data Sheet
2015-11-04

EC10 & EX16 Quick Start Guide

1.33 Mb Quick Start Guide
2015-11-04
