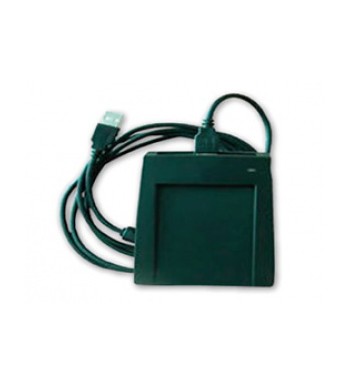

CR10 Series are accessories designed to read (CR10E/M) & write (CR10M/W) proximity cards. They are connected to PC through USB Port (Plug & play). They allow high speed transactions and incorporate LED indicators. CR10M/W includes communication protocol for development and it’s compatible with S.O Windows 32 bits. CR10E and CR10M are compatible with all kind of windows S.O and read the same serial number as ZKTeco devices.
- Frequency 125KHz (CR10E), 13.56MHz (CR10M/CR10M-W)
- Read Range: Up to 10CM (125 KHz) / Up to 5CM (13.56MHz)
- Read card number only (CR10E/CR10M)
- Read and write functionality (CR10M/W)
- USB Interface
- Power by USB
- High speed transactions
- LED Indicator and buzzer feedback
- No need driver (emulation keypad) Compatible with windows98/2000/XP/Vista/windows7 (CR10E/M)
- Communication protocol available for development (CR10M/W)
- Compatible with windows2k/2003/XP/Vista (32bits)/windows7 (32bits)
|
Model |
CR10E |
|
Read Range |
Up to10CM (CR10E) 5CM(CR10M) |
|
Power / Current |
USB 5V DC / Max. 100mA |
|
LED Indicator |
2 Color LED Indicators (Red&Green) |
|
Beeper |
yes |
|
Operating Frecuency |
125KHz (CR10E) 13.56MHz (CR10M |
|
Operating temperature |
-10º to +70º |
|
Operating Humidity |
10% to 90% ( relative humidity non- considered) |
|
Operating temperature |
-20° to +65°C |
|
Operating Humidity |
10% to 90% (relative humidity non-considered) |
|
Color |
Black |
|
Material |
ABS+PC with texture |
|
Dimension: (WxHxT) mm |
140x100x30 |
|
Weight |
120g |
|
Operating system support |
IEmulation Keypad (Compatible with WIN98/2000/XP/VISTA/7) |
