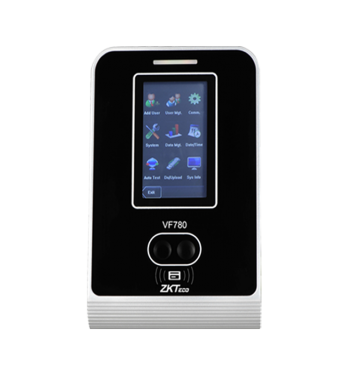

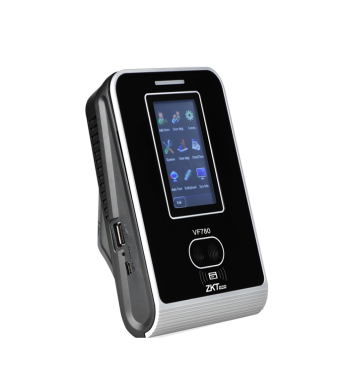

VF780
  • Face/Card/Password verification
  • Wi-Fi, Ethernet, and USB client/host communication
  • Professional ZKTeco face identification algorithm
  • 800 face capacity and 10,000 ID Card Capacity

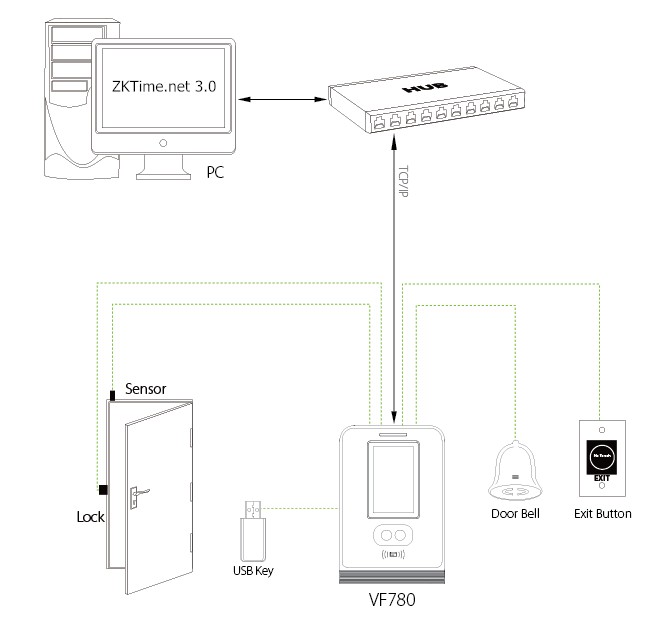

VF780 is a face identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.

With the latest face identification algorithm and streamlined technology, it can hold 800 face templates without dividing into groups.

Communicating via Wi-Fi(Optional), TCP/IP, and USB client/host, it ensures a smooth connection and data transfer.

  • Elegant ergonomic design; Easy installation.
  • Wi-Fi (Optional), TCP/IP, and USBclient/hostcommunication.
  • Professional ZKTeco face identification algorithm.
  • 800 face capacity and 10,000 ID Card Capacity.
  • Optional Mifare card module.
  • Infra-red optical system enables user-identification in a wide range of light environments.

Display

3-inch Touch Screen

Face Capacity

800(Standard)/1200(Optional)(1:N)

ID Card Capacity

10,000

Logs Capacity

100,000

Communication

TCP/IP, USB client and USB host

Standard Functions

ID Card, Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Photo ID, Alarm, Scheduled-bell and SMS, Multiple Verify Mode, 3rd Party Electric Lock, Door Sensor and Exit Button

Optional Function

Mifare Card, Wi-Fi, ADMS

Power Supply

12V/1.5A

Verification Speed

≤1 sec

Operating Temperature

0-45 °C

Operating Humidity

20%-80%

Dimensions

104.7 × 160 × 36 mm (L × H × D)

';

USB cable

Back Plate

Cable connector

Electric wire intake box

Measuring tape

Mounting paper

Power adapter

Screw driver

Screws

Touch pen

VF780

0.56 Mb Data Sheet
2015-09-09

VF780 User Manual

9.13 Mb User Manual
2015-09-09

VF780 Quick Start Guide

0.84 Mb Quick Start Guide
2015-09-09
