UA760

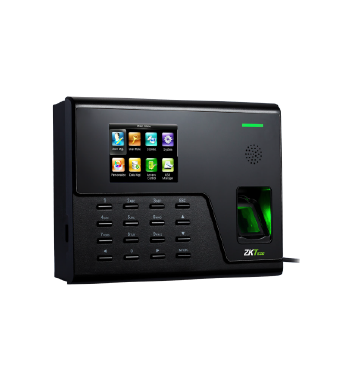

UA760 is a 2.8 inches color screen biometric terminal for Time & Attendance, and Access Control (primary) applications. It adopts BioID fingerprint collector for excellent recognition and internal WiFi for convenient communication. Users can manage data via TCP/IP, WiFi, and USB host port for data up/download to avoid the risk of accidental deletion. Besides, optional WDMS can achieve remote data management with our ZKTime.Net 3.0.

  • Wi-Fi: WiFi module is integrated. It is working on the 2.4G radio band, and meet the IEEE 802.11b/g/n standards.
  • USB: Support USB host connection to achieve data backup and management
    while the device is standalone.
  • WDMS: Optional for devices worldwide using. Solve the device’s capacity limitation
    through networking via HTTP sever. Mondial devices can be connected and
    upload & backup data automatically. This is helpful for devices managing
    and monitoring.
  • BioID: Using BioID Fingerprint Collector for excellent recognition rate. Dry, moist, or
    rough fingerprints can work well.WDMS
User Capacity                                                                                                                                                  3000
Fingerprint Capacity 3000
ID Card Capacity 3000 optional
Record Capacity 50,000
Display 2.8’’ color screen
Communication  TCP/IP, WiFi, USB-host
Standard Functions 9 Digit User ID, T9 Input, SMS, DST, Self-Service Query, Automatic Status Switch, Ring bell
Optional Functions ID/Mifare, WDMS, RS232 External Printer
Access Control Interface 3rd Party Electirc Lock, Exit Button
Software ZKTime.Net 3.0
Power Supply                               DC 12V/1.5A
Dimension 186*138*43.6mm (LxWxT)
186*138*43.6mm (LxWxT) 0 °C - 45 °C
Operating Humidity 20% - 80%
';

UA760

0.62 Mb Data Sheet
2017-04-27
Download
