TS1200 Series
  • TS1200 Tripod Turnstile

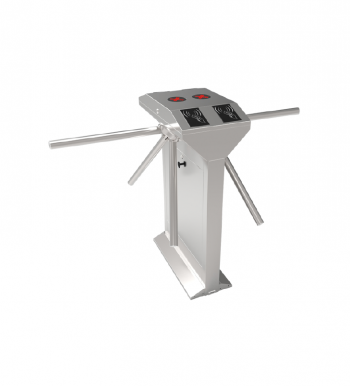

  • TS1211 Tripod Turnstile with Controller and RFID Reader

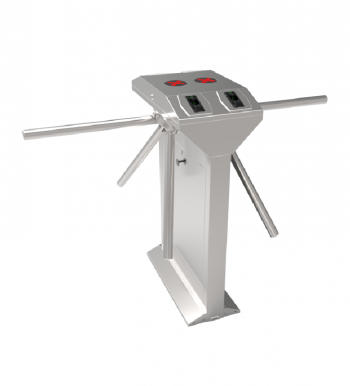

  • TS1222 Tripod Turnstile with Controller and Fingerprint& RFID Reader

Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.


The TS1200 series, our stainless steel compact version, offer high operating reliability in a small casework, ideal for sites where space is an issue. The TS1200 series have two passage channels in one casework, it is cost-effective for the application.

On receiving a signal from the access control system, or push button, it allows the passage of one person at a time. Passage in both directions is electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage.

Reliability

• Alloy steel tripod hub prevents mechanical wear
• Casework and tripod arms manufactured in stainless steel
• Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle.
• ZK patented compact mechanism ensures the long life of the lubricating oil inside.
• High quality electrical components

Safety and User-Orientated Design

• Drop arm designed for emergency purpose
• No exposed screws, safer for the user.
• Smooth operation designed for mas transit application
• The pictogram on the device indicating access permission and direction of movement
• Special designed case shape, user-friendly for passenger to punch card or finger.
• Anti-tailgate
• Well-designed electronic protection cover. Neat wiring inside.

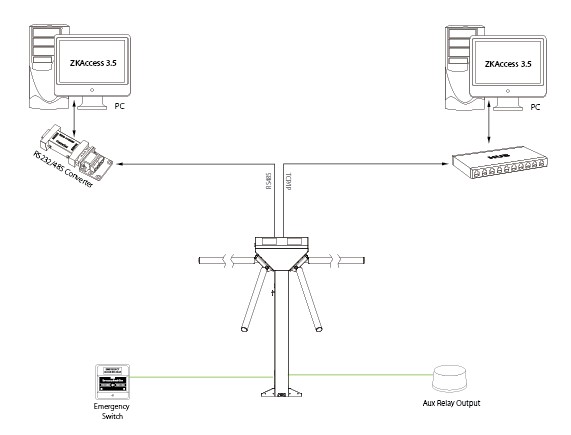

Easy Integration

• Flexible reader installation plate. Customers can easily integrate with third party redaer
• Standard electrical interface for third party device.
• By using compact mechanism, the turnstile has more space inside for integration
• ZKTeco provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation.

Power Supply

AC 220V/110V, 50/60Hz

Operating Temperature

-28 °C- 60 °C

Operating Humidity

5%-85%

Working Environment

Indoor/Outdoor(shelter)

Rated Power

120W

Flow Rate

25- 48 passage/minute

Casework Material

SUS304

Pictogram Indication

Yes

Control System

Input controlled by dry contact

Emergency Button Input

Yes

Dimension

60×98×33(CM) + arm length 50CM

Package Dimension

73×108×45(CM)

Net Weight

55KG

Gross Weight with Package

63KG

Optional Function

Alternative material or shape, third-party access control integration, ticket system integration, passage counter

';
