• Waterproof, Dustproof, Shockproof
  • Portable Finger device
  • 3G communication

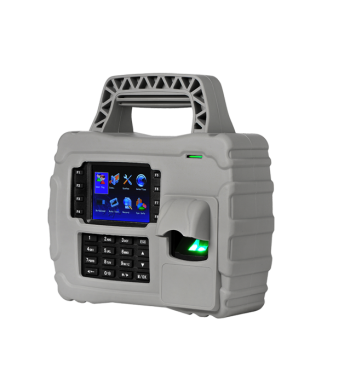

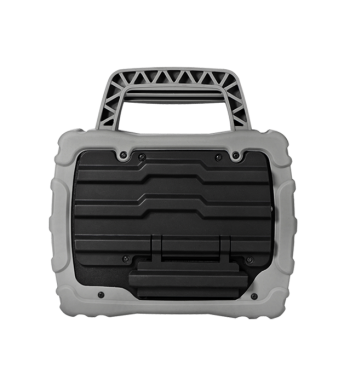

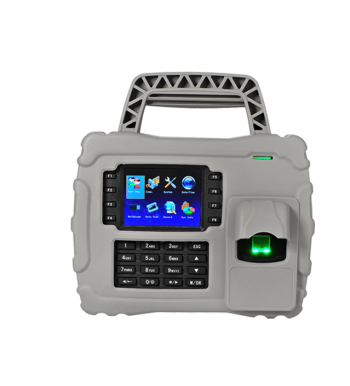

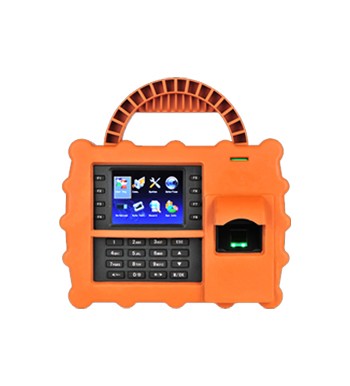

The S922 is a unique portable fingerprint time attendance terminal with a rubber coating. It is specifically designed for off-site time management, such as construction sites, logistic industries, large farms, and the mining industry. Adopting a rubber coating process, its waterproof and dustproof efficacy reached an IP65 protection grade. There is a handle at the top of the rubber coating, which enables users to carry it easily. Above all, the S922 is shockproof (1m above the ground) due to its unique rubber coating.

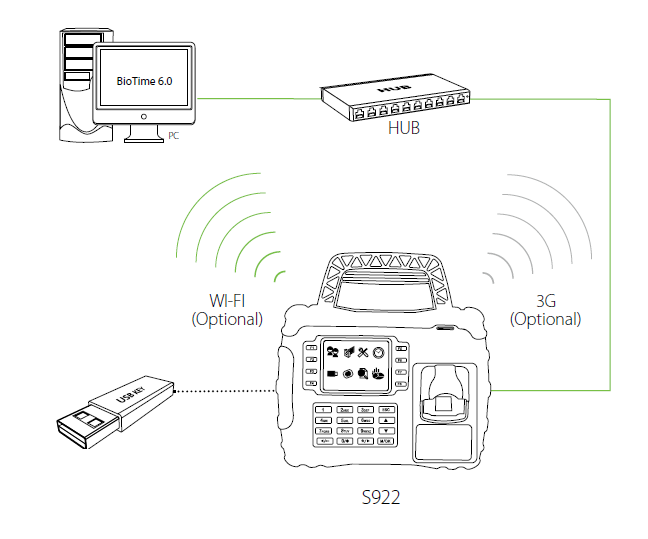

TCP/IP and USB-host are standard communication modes. It also has options for GPRS, Wi-Fi and 3G (WCDMA) connectivity, which makes data management extremely convenient. The S922 can be used in multiple authentications that support fingerprint, Proximity card or Mifare card.

  • Built-in 7600 mAh backup battery extends extra operation time
  • Communication via GPRS, TCP/IP, USB-host and optional with Wi-Fi/GPRS/3G (WCDMA)
  • IP65 rated water-proof and dust-proof protection grade
  • Shock proof (1m above theground)
  • Rubber coated protection
  • Convenient carry case design


3.5-inch TFT Screen

Fingerprint Capacity

5, 000 (Standard)/10,000 (Optional)

Card Capacity

30,000 (ID Card)

Transaction Capacity


Fingerprint Sensor

ZK Optical Sensor

Algorithm Version

ZKFinger VX10.0


TCP/IP, USB-host ; Optional with Wi-Fi/GPRS/3G (WCDMA)

Standard Functions

ADMS, Work-code, DST, Self-Service Query, Automatic Status Switch,

T9 Input, Photo-ID, 9 Digit User ID, SMS, ID Card

Optional Functions

HID /Mifare Card

Protection Grade


Power Supply

12V 3A DC; Built-in Backup 7600 mAh Battery

Operating Temperature

0 oC- 45 oC

Operating Humidity



225 x235x125(mm) HxWxD



Backup battery

Power adapter cable

Power adapter


2.77 Mb Data Sheet
