P160
  • Easy installation
  • Elegant ergonomic design
  • TCP/IP, USB-Host and Wi-Fi communication

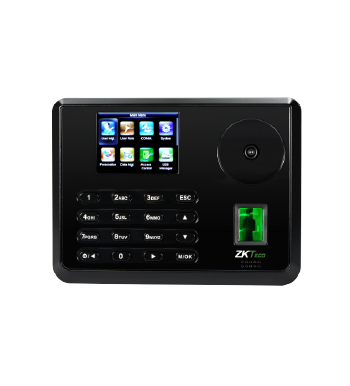

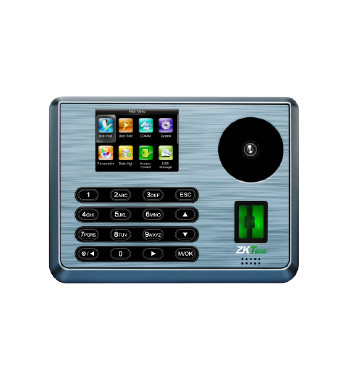

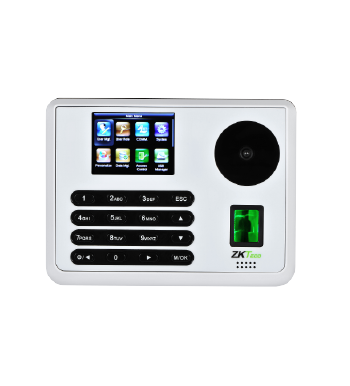

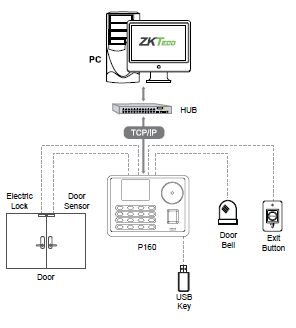

P160 is a multibiometric identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.

With the latest palm/fingerprint identification algorithm and streamlined technology, it can hold 600 palm templates and up to 20,000 fingerprint templates without dividing into groups.

Communicating via Wi-Fi, TCP/IP, and USB host, it ensures a smooth connection and data transfer. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.

  • 600 Palms, 3,000 Fingerprints, 10,000 ID cards and 100,000 records.
  • Elegant ergonomic design.
  • Easy installation.
  • TCP/IP, USB-Host and Wi-Fi communication
  • POE module/ 3G module/ High (general) level access control module/Battery module/ Printer
  • Verification speed less than 1 second
  • Professional ZKTeco Palm and fingerprints identification algorithm



Technical Specifications
Display 2.8-inch TFT Color Display
Palm Capacity 600 (Standard)
Fingerprint Capacity 3,000
ID Card Capacity 10,000 (Optional)
Logs Capacity 100,000
Communication TCP/IP, USB-Host, Wi-Fi
Standard Functions Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User
ID, DST, Scheduled-bell,SMS,RS232 Printer
AC module 1:Exit Button, Door Lock, Alarm,12V OUT,AUX IN
Optional Function ID Card, MIFARE Card
AC module 2: Exit Button, Door Lock, Alarm,12V OUT, AUX IN, Door Sensor, RS485,
Wiegand IN/OUT.
POE, 3G, Battery Module, ADMS
Power Supply 12V 1.5A
Verification Speed ≤1 sec
Operating Temperature 0 - 45 °C
Operating Humidity 20% - 80%
Dimensions 179.95 x 134.94 x 38.5 mm
';

P160 User Manual

5.6 Mb User Manual
2017-03-23

P160 Quick Start Guide

1.14 Mb Quick Start Guide
2017-03-23

P160

0.29 Mb Data Sheet
2017-04-16
