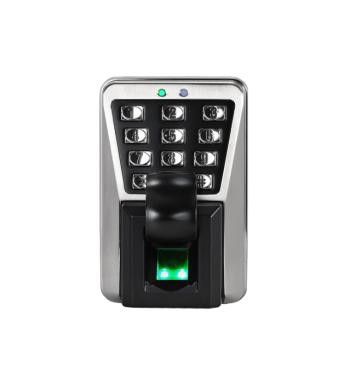

MA500
  • Metal Design & Anti-Vandal.
  • Able to connect specially designed FR1200 fingerprint slave reader.
  • IP65 waterproof.

MA500 is an advanced biometric access control terminal that can be operated in standalone mode as well as network mode through TCP/IP or RS485 for software management. Equipping with a robust metal housing and durable backlit keypad, MA500 is vandal resistant and IP65 rated. It is suitable to be installed in high traffic and harsh environments.

Apart from connecting with electric lock, door sensor, alarm and exit button, MA500 can perform as a wiegand fingerprint reader by any 3rd party control panels, namely, the network mode. It is value added and very easy to replace conventional proximity or keypad access control system by biometric technology.

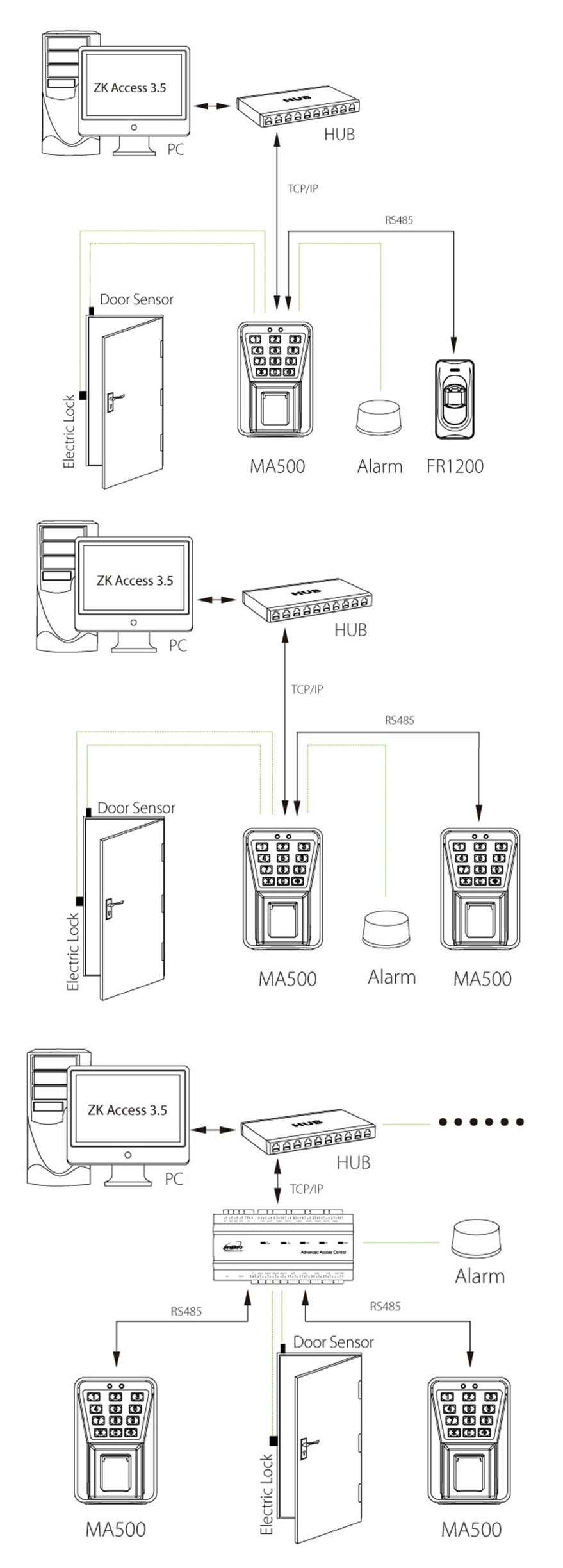

Embedded with the latest firmware, MA500 supports ZKAccess3.5 management software which has versatile features and powerful functions. Another benefit is that, it supports FR1200 fingerprint reader and realizes Master and Slave solution by RS485 connection instead of wiegand. MA500 can also function the same as FR1200 to connect with inBIO series controllers as a RS485 fingerprint reader.

  • Vandal resistant & IP65 waterproofed, Ideal for outdoor installation.
  • Large storage capacity up to 3,000 fingerprints, 30,000 proximity cards and 100,000 logs.
  • Able to connect specially designed FR1200 fingerprint slave reader.
  • Combine master and slave system to secure the entrance and exit with dual biometric authentication and by RS485.
  • Support Anti-passback to maximize security level.
  • Easy to integrate with existing system. Wiegand output is connectable to most of the access control panel brands.
  • Provide various types of alarms, such as, door sensor alarm, duress alarm etc.
  • Free Pull SDK available for integration.

Model

MA500

Software

ZKAccess3.5

SDK

New PULL SDK

Fingerprint Sensor

Optical sensor with protective cover

Algorithm Version

ZKFinger VX10.0

Fingerprint Capacity

3,000

Card Capacity

30,000

Log Capacity

100,000

RF Card

EM(standard)/Mifare(optional)

Authentication Method

FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN & RF

Access Control Interface

Electric lock, Door sensor, Alarm, Exit button

Communication

TCP/IP, RS485

Wiegand Signal

Wiegand out

Ingress Protection Rate

IP65

Power Supply

12VDC 3A

Operating Temperature

0°C - 45°C

Dimensions (W×H×D)

83mm×127.5mm×74mm

';

Cables

Diode (FR107)

ID card

Installation Guide

Screw driver

Screws

User manual

MA500

0.53 Mb Data Sheet
2015-09-08

MA500 User Manual

1.51 Mb User Manual
2015-09-08

Ma500 Quick Start Guide

1.51 Mb Quick Start Guide
2015-09-08
