L5000
- European standard mortise with 5 latches
- Fingerprint/Password/Card/Key
- ID/Mifare card reader is optional

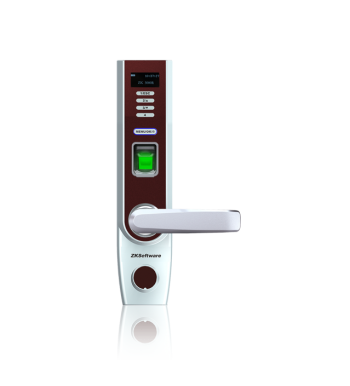

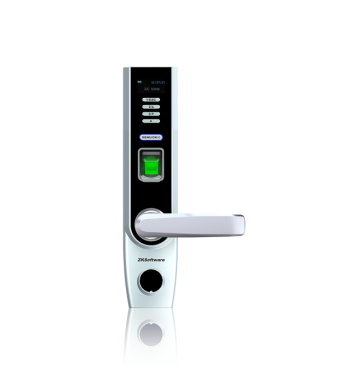

L5000 is one smart lock with embedded fingerprint recognition technology. It uses European standard mortise with 5 latches, the deadbolt will be locked automatically once the door is closed.It also has four unlocking ways- fingerprint ,password,card, mechanical key.
- With the new generation fingerprint recognition algorithm
- European standard mortise with 5 latches
- Idle handle design to prevent from forcible entry
- OLED display screen with visual menu
- Four independent unlocking - fingerprint,password,card,mechanical Key
- Smart alarm for low battery & illegal operation
- Data upload/download via USB port
- Support passage mode - Normal Open
- Support query door open logs
- External terminals to draw back-up power from a 9V battery
- Backset is 55 mm
- 125khz ID card reader (optional)
- 13.56mhz Mifare card reader (optional)
- Access Timetable Management (optional)
- Remote open door (optional)
|
Material |
Zinc Alloy |
|
Fingerprint Capacity |
500 |
|
Password Capacity |
100 |
|
Log Capacity |
30000 |
|
Communication |
USB flash disk |
|
Options |
ID card,Mifare card,Remote Control Key |
|
Operating Temperature |
0° - 45° |
|
Power Supply |
4×AA Alkaline Battery |
|
Backup Unlock |
9V Battery & Mechanical Key |
|
Door Thickness |
35-50 mm (standard) |
|
|
50-65 mm (optional) |
|
|
65-80 mm (optional) |
Cylinder
Gasket
Indoor Unit
Installation Guide
Mechanical key
Mortise
Mounting plate
Outdoor unit
Screws
Spindles
Strike box
