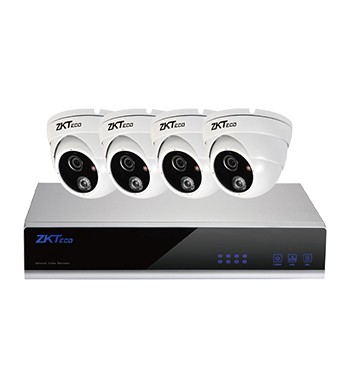

KIT101
  • High Resolution
  • Remote Viewing
  • Efficient Storage
  • Easy USB Backup
  • Access control linkage solution

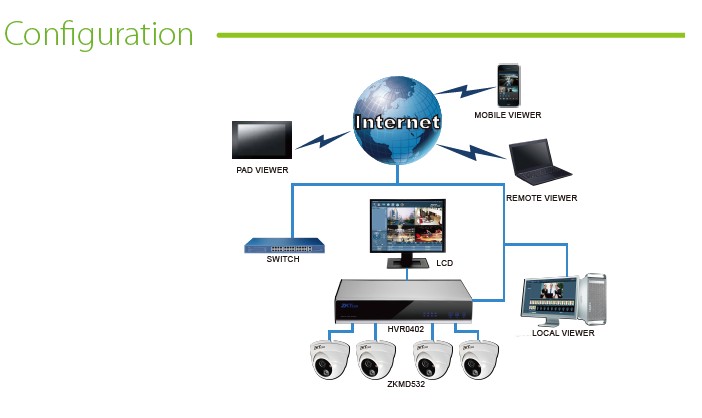

For SMB market, ZKivision brings the complete and professional grade do-it-yourself video surveillance and access control kit which include NVR, IP Cameras and access control device together to achieve more flexible applications. With our fully integrated HD network Surveillance Kit, you can keep an eye on your business 24/7.

Model

ZKMD532

Image Sensor

1/4’’ CMOS

Image Resolution

1280*720

Minimum Illumination

1 Lux(IR off),0 Lux(IR on)

Day/Night Mode

Automatically IR-cut filter

Lens Type

3.6mm fixed lens

IR Distance

1pcs array IR light , 60°projection angle,5-8 meters valid

System

LINUX

Video Compression

H.264 main profile level 3

Video Resolution

Main stream:1280x720/Secondary stream:640x352/Third stream:320x176

Image Streaming

32Kbits/s~6144Kbits/s settable

Video Frame Rate

PAL:1-25 frame NTSC:1-30 frame

Image Settings

Brightness 、Contrast 、Saturation、Shutter

Control Port

reset

Motion Detection

4 independent detection areas settable

Network Interface

100M

Power Supply

12V / 1A

Power Consumption

<5W

Working Temperature

-10℃~ 55℃

Net Weight

0.5KG

';

KIT101

1.15 Mb Data Sheet
2015-09-01

KIT101 User Manual

1.74 Mb User Manual
2015-09-01
