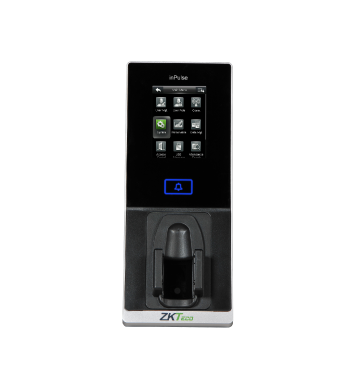

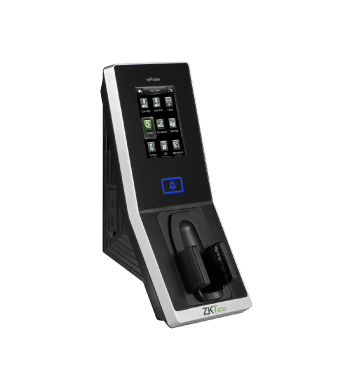

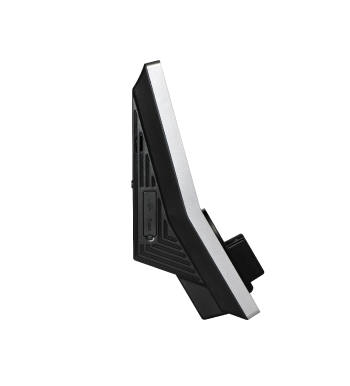

inPulse
  • High Security Finger Vein Recognition
  • TFT-LCD Color Touch Screen

inPulse is an IP-based finger vein access control terminal that works as a standalone device or connected to a third party access control panel using Wiegand interface. With patented vein recognition technology, inPulse is able to identify fake or dry fingers, and providing excellent performance under strong sunlight.

• Modern Design & Interactive UI
• High Security Finger Vein Recognition
• Multiple Verification Modes:Finger Vein / Card / Password
• TFT-LCD Color Touch Screen
• Simple Management & Scalability

Finger Vein Capacity

1,500

Card Capacity

2,000

Transaction Capacity

100,000

Communication

TCP/IP, USB Host / Client, Wiegand Input / Output, Security Relay Box

Hardware

1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, 2.8 Inches TFT-LCD Touch Screen, 125KHz, EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm

Standard Functions

Access Levels / Groups / Holidays, DST / Bell Schedule, Duress Mode (Password), Anti-Passback, Record Query, Custom Wallpaper & Screen Saver

Optional Functions

HID / Mifare Card Reader, External Printer , Wi-Fi / 3G, Battery (2,000 mAH)

Special Functions

Multiple Verification Modes

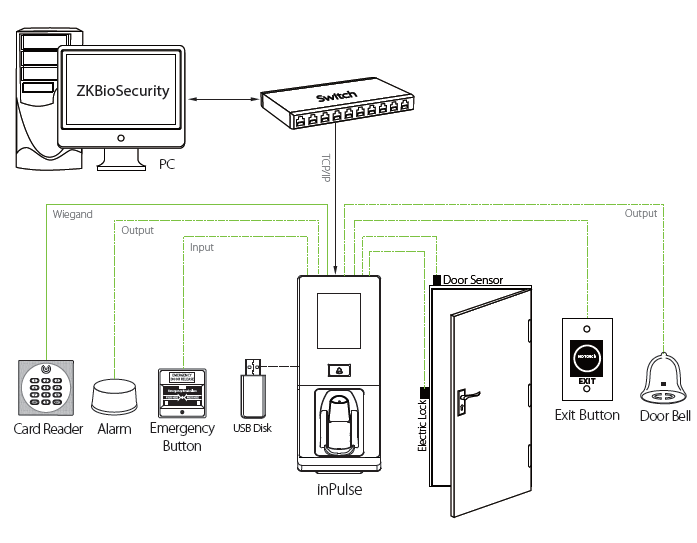

Access Control Interface

Lock Relay Output, Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output

Compatibility

Wiegand Slave Reader, ZKBioSecurity Software

Working Temperature

-10 °C ~ 50 °C

Dimensions

201.7 × 85 × 102.7 mm

Algorithm

ZKVein v3.0 Algorithm

Power

Operating Voltage 12V DC, Current Draw < 500 mA

';

Installation Guide

Diode (FR107)

Power Adapter

Screw Driver

Screws and holders

Cables

inPulse Quick Start Guide

2.12 Mb Quick Start Guide
2016-02-29

inPulse Installation Guide

2.46 Mb Installation Guide
2016-02-29

inPulse

0.86 Mb Data Sheet
2017-04-16
