iFace850
  • High verification speed
  • Multi-languages

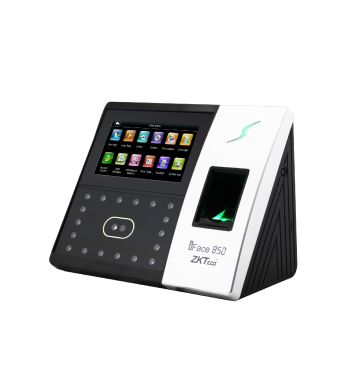

iFace850 is a Multi-Biometric T&A and Access Control Terminal which supports 3,000 face templates, 2,000 fingerprint templates and 10,000 cards (optional). It is equipped with ZKTeco latest hardware platform and algorithm, which provide clients with a brand new UI and user-friendly operating interface, bringing them a smooth using experience.

With the advanced face algorithm and multi-biometric verification technology, the terminal's security level of verification is greatly enhanced.

  • Multi-languages
  • High verification speed
  • Advanced and user-friendly UI
  • Chip encryption for firmware protection
  • Optional built-in battery backup providing approximately 4 hours of continuous operation
  • Easy to extend functions and customize client’s requirements
  • One face template is registered for one user only
  • Able to detect whether the face is an actual face or a photo, enhancing the security level of verification

Display

4.3" TFT Touch Screen

Face Capacity

3,000 (1:N)

Fingerprint Capacity

2,000

ID Card Capacity

10,000 (Optional)

Logs Capacity

100,000

Communication

TCP/IP, RS232/485, USB Host

Time Attendance Standard Functions

Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-Bell, Photo-ID, Multiple Verify Mode, ADMS

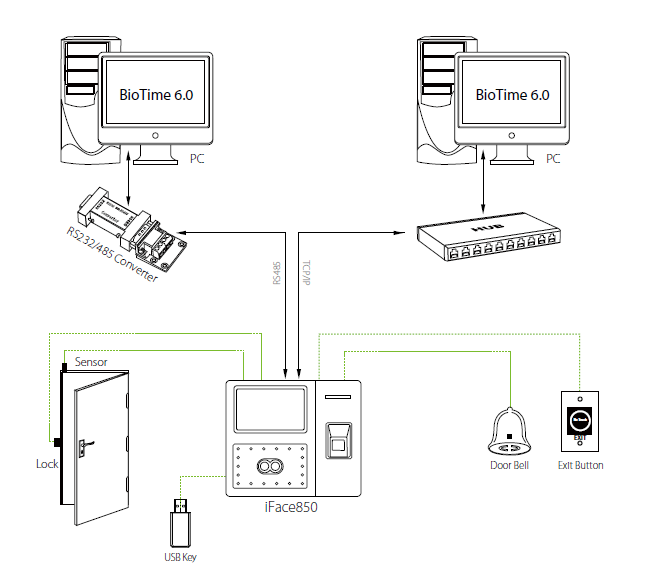

Access Control Interfaces for

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Wiegand Signal

Output

Optional functions

2000mAh Backup Battery, ID Card, Mifare card, ADMS,  Wi-Fi, 3G

Power supply

DC 12V 3A

Verification Speed

≤1 sec

Operating temp.

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

193.7×164.5×112.5 mm

';

Back Plate

Measuring Tape

Mounting Paper

Power Adapter

Screw Driver

Screws

Cables

iFace850 User Manual

8.56 Mb User Manual
2016-07-12

iFace850

0.32 Mb Data Sheet
2017-04-16
