iClock3000
  • Intuitive and stunning UI design
  • Great user interactivity
  • User validity setting

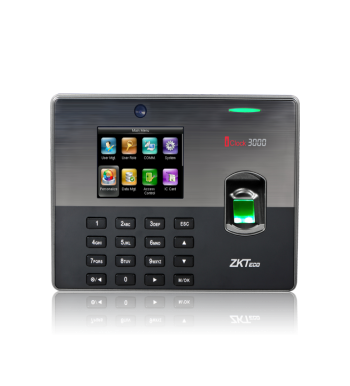

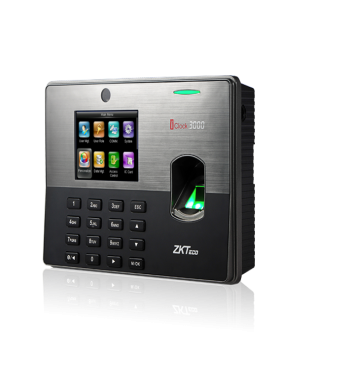

iClock3000 is a 3.5-inch TFT screen Time Attendance & Access Control Terminal with large Finger template capacity 20,000. Adopting the new user-friendly firmware and latest core board, it improves performance, accelerates identification speed and more extendable for various customization requirement.

Remarkable User Experience

  • Intuitive and stunning UI designed with the most popular and internationalized element
  • Interface operation adopts modularized hierarchical design.
  • Great user interactivity
  • User validity setting

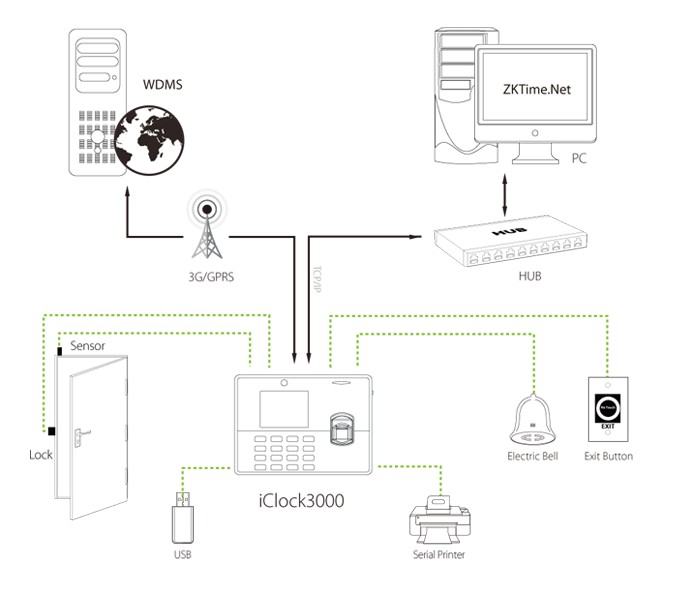

Access Control Interface

  • Wiegand in and out, door lock, sensor connection, alarm

Enhanced Features and Performance

  • Multi-languages
  • Data backup and retrieve
  • Advanced User ID consisted of letters and numbers
  • Chip encryption for firmware protection
  • Easy to extend functions and customize customers’ requirements



Fingerprint Capacity

20,000

ID Card Capacity

20,000 (Optional)

Record Capacity

150,000

Display

3 .5-inch TFT Screen

Communication

TCP/IP, USB-host

Standard Functions

Work code, SMS, DST, Webserver, Scheduled-bell, Self-Service Query,

Automatic Status Switch, Photo ID, Multiple Verify Mode, T9 Input, Camera, Anti-passback, ADMS

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Bell

Wiegand Signal

Input & Output

Optional Functions

ID/Mifare, GPRS, 3G(WCDMA), Wi-Fi, External Printer

Power Supply

DC12V 3A

Verification Speed

≤1 Sec.

Operating Temp

0°C - 45°C

Operating Humidity

20% - 80%

Dimension

206.0×150.0×48.4mm (Length×Width×Thickness)

Net Weight

556g

';

Back Plate

Wires

Mounting Paper

Power Adapter

Screw Driver

Screws

iClock3000 User Manual

8.72 Mb User Manual
2015-09-09

iClock3000

1.99 Mb Installation Guide
2015-09-09

iClock3000

0.46 Mb Data Sheet
2015-11-12
