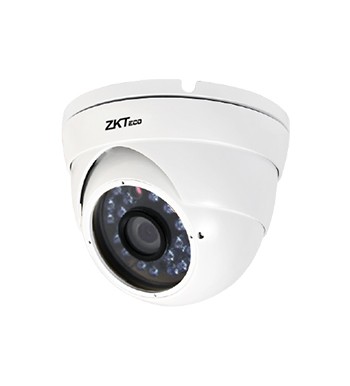

GT-DD510/513/520
  • Support P2P function and Cloud Service
  • Support Andriod, IOS system
  • Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP networking protocol
  • Support Onvif 2.0+, Compatible with mainstream NVR
  • Support Night vision, IR distance is 10-15 meters

Model

GT-DD510

GT-DD513

GT-DD520

Sensor

Omnivision OV9712

Aptina AR0130

SONY IMX122

Light-sensing Area

1/4-inch

1/3-inch

1/3-inch

Resolution

1.0MP

1.3MP

2.0MP

De­finition

1280(H)x720(V)

1280(H)x960(V)

1920(H)x1080(V)

Main Stream

1280x720 / 704x576

1280x960 / 1280x720

1920x1080 / 1280x720

Secondary Stream

PAL:704x576; 352x288 / NTSC:704x480; 352x240

Video Frame

PAL:25 frame; NTSC:30 frame

Frame Rate

Main stream:1-4Mbps

Main stream:1-5Mbps

Main stream:1-8Mbps



Second stream:0.5-2Mbps

Second stream:0.5-2Mbps

Second stream:0.5-2Mbps

Min. Illumination

IR on: 0 Lux

Lens

2.8MM-12MM Varifocal lens as default

Signal Noise Ratio

40dB

45dB

52dB

White Balance

Auto

Shutter

Auto

Infrared Resection

IR-CUT

IR Distance

10-15m

Power Supply

DC 12V /1.5A

Operating Temperature

-10℃~+50℃

Mobile View

IPhone, Android

 ONVIF

 Onvif 2.0+

Network Delay

Less than 300ms in LAN

Web Interface

Embedded web server, supports real-time video and audio preview, con­figuration, control via IE browser

Alarm Trigger

Alarm via email server(send snapshot or not); upload video to FTP server

Video Storage

Support saving via FTP, client end software

Remote Control

Via web server/client end software

Net/Gross Weight

0.69kg/0.79kg

Dimension(color box)

 130mm*130mm*115mm

GT-DD510/513/520

11.89 Mb Data Sheet
2015-09-01

GT-DD510/513/520 Quick Start Guide

0.91 Mb Quick Start Guide
2015-09-01
