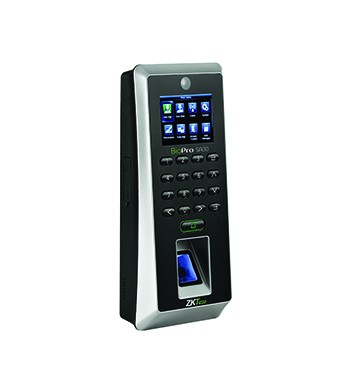

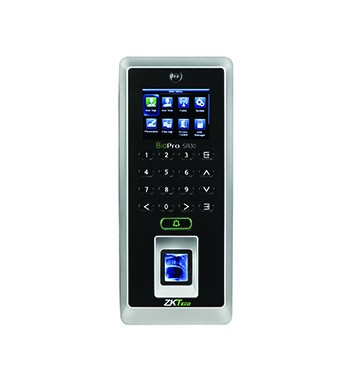

BioPro SA30
  • SilkID fingerprint reader with live detecting function
  • Multiple Verification Mode

BioPro SA30 is the first time attendance and access control terminal applying the most advanced SilkID technology. It doesn't only possesses outstandingly high identification rate towards dry, wet and rough finger, but also provides the utmost security by its live finger detecting capability.as well as photo taking function which enables attendance photo and Photo ID(optional).

In addition, with the brand new ZMM220 hardware platform, its clock rate can attain 1.2GHZ. Such speedy hardware platform and fingerprint algorithm greatly enhance the speed of fingerprint verification.

  • 2.4-inch TFT color screen
  • SilkID fingerprint reader with living object detecting function
  • Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
  • Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
  • Camera Function: record photo, photo ID (optional)
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

Display

2.4-inch TFT LCD Color Screen

Fingerprint Capacity

3000

Card Capacity

5000(Optional) ID or mifare card

Transaction Capacity

100,000

Sensor

SilkID Sensor

Algorithm Version

ZKFinger VX10.0

Communication

RS232/485, TCP/IP, USB-host

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

Wiegand Signal

Input, Output, SRB

Aux. Input

1ea for linkage function

Functions

DST,Automatic Status Switch, Anti-passback,Scheduled-Bell, ADMS, Printer(Optional)

Power Supply

12V DC,3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

';

Installation Guide

Cables

Diode (FR107)

RJ45 connector

Screw driver

Screws

BioPro SA30 Installation Guide

1.65 Mb Installation Guide
2015-12-07

BioPro SA30 Quick Start Guide

1.23 Mb Quick Start Guide
2015-12-07

BioPro SA30 User Manual

6.64 Mb User Manual
2015-12-07

BioPro SA30

0.3 Mb Data Sheet
2017-04-16
