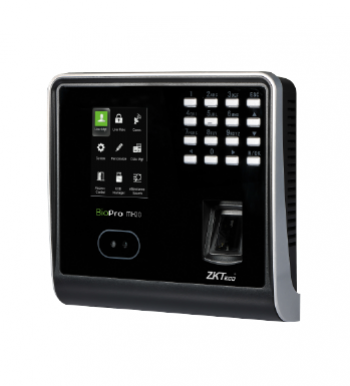

BioPro MH20
  • SilkID Fingerprint Reader, Face Recognition, RFID card functions
  • Built-in 2000mAh backup battery

BioPro MH20 is the first ever Time & Attendance and Access Control Terminal to be associated with SilkID Fingerprint Reader, Face Recognition and RFID Card functions. With the new SilkID Fingerprint Reader, the operation remain stable under strong light source and high preciseness of verification of wet and rough fingers. One of the remarkable feature of SilkID sensor is it can detect fake fingerprint.

With the innovative features, BioPro MH20 is bringing you the whole new experience.

  • Multi-biometric fast verification
  • Stable operation under strong light source
  • Infrared auto-tuning on function to save power
  • Quick recognition of dry, wet, and rough fingers
  • Multi-language supported
  • Built-in 2000mAh backup battery to extend operation time
Face Capacity 3,000
Fingerprint Capacity 5,000
ID Card Capacity 20,000 (Optional)
Record Capacity 100, 000
Display 2.8-inch TFT Screen
Communication RS232/485, TCP/IP, USB (Host)
Standard Functions Work Code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, Photo ID, T9 Input, Camera, 9 digit user ID, Built-in Battery, ADMS

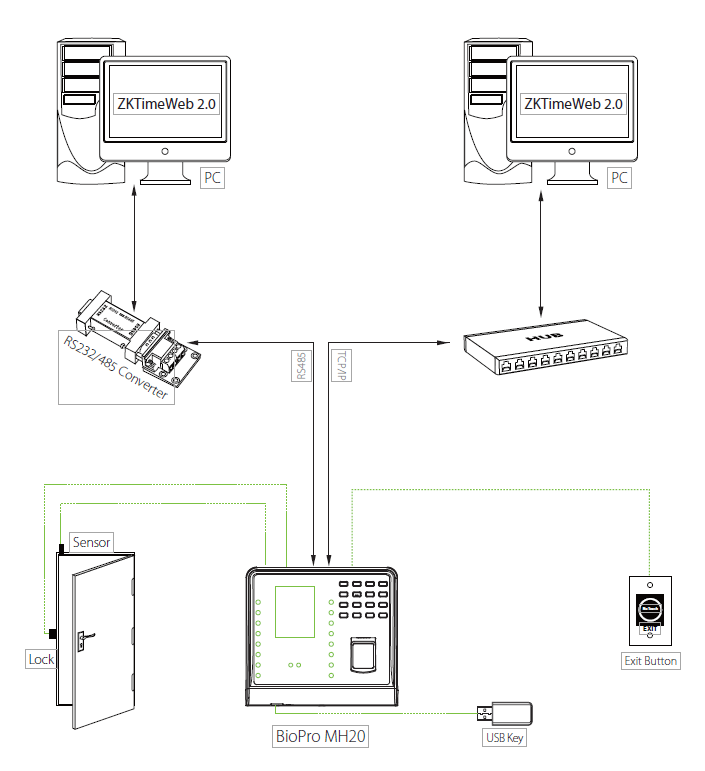

Access Control Interface for Lock, Door Sensor, Exit Button, Alarm
Optional Functions ID/Mifare
Power Supply 12V DC, 3A
Operating Temperature 0°C - 45°C
Operating Humidity 20% - 80%
Dimension 173.0 x 159.0 x 36.1mm
Package Weight 490g
';

BioPro MH20

0.19 Mb Data Sheet
2017-04-16
