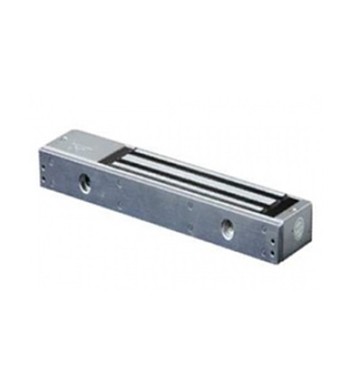

AL-280 LED
  • Unfold installation(middle)
  • Power-on to lock
  • No residual magnetism, no mechanical damage, single door
  • Lock status signal NO/NC output, LED display
  • 90 degrees open for all kinds of doors with frame
  • Frameless doors or inswinging door doors can choose accessories
  • Inswing door accessories:AL-280PL and AL-280PZ
  • Frameless glass door accessories:AL-280PU
  • Model: AL-280(LED)
Working Voltage DC12V/24V input
Working Current 500mA/250mA
Operating Temperature -10~+55℃(14-131F)
Operating Humidity 0-90%
Holding Force 270kg
Weight 1.97kg
Size 253*25*48mm
